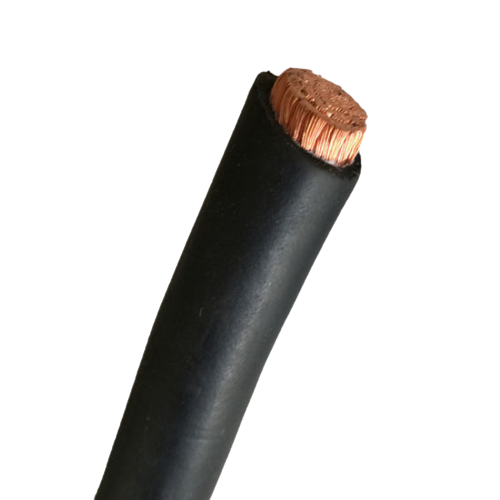

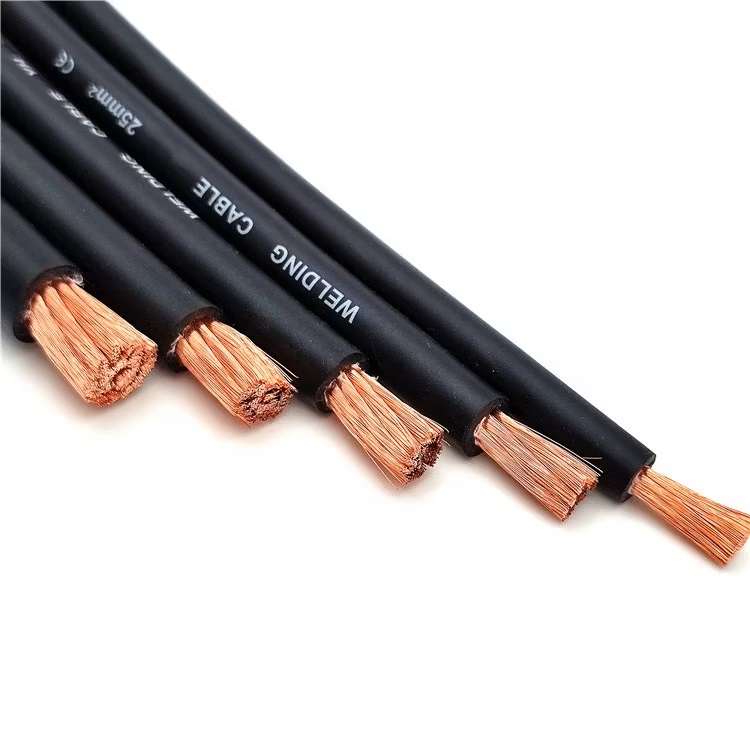

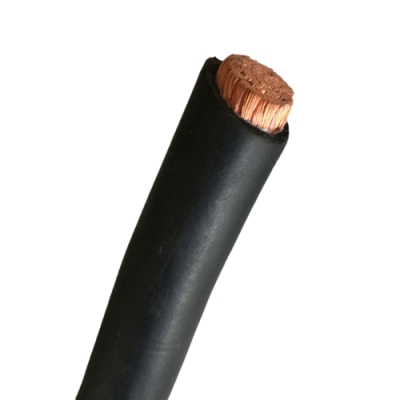

Welding Cables

1. Applications: for use on connections from electrode holders and clamps to arc welders, bus welding box or transformers.

2. Structure:

Conductor: rope lay Class K stranded soft drawn bare copper conductor per ASTM B-172

Insulation: thermoplastic Ethylene Propylene Rubber (EPR) insulation, which is highly resistant to flame, oil, grease, solvents, ozone and abrasion.

3. Voltage: 600V

4. Standard: UL1276, UL44

5. Working temperature: -50~+105℃

6. Minimum bending radius: 4X Cable’ diameter
